100th Anniversary Limited Edition
| Phono Motor section | |
|---|---|
| Drive system | Belt drive system |

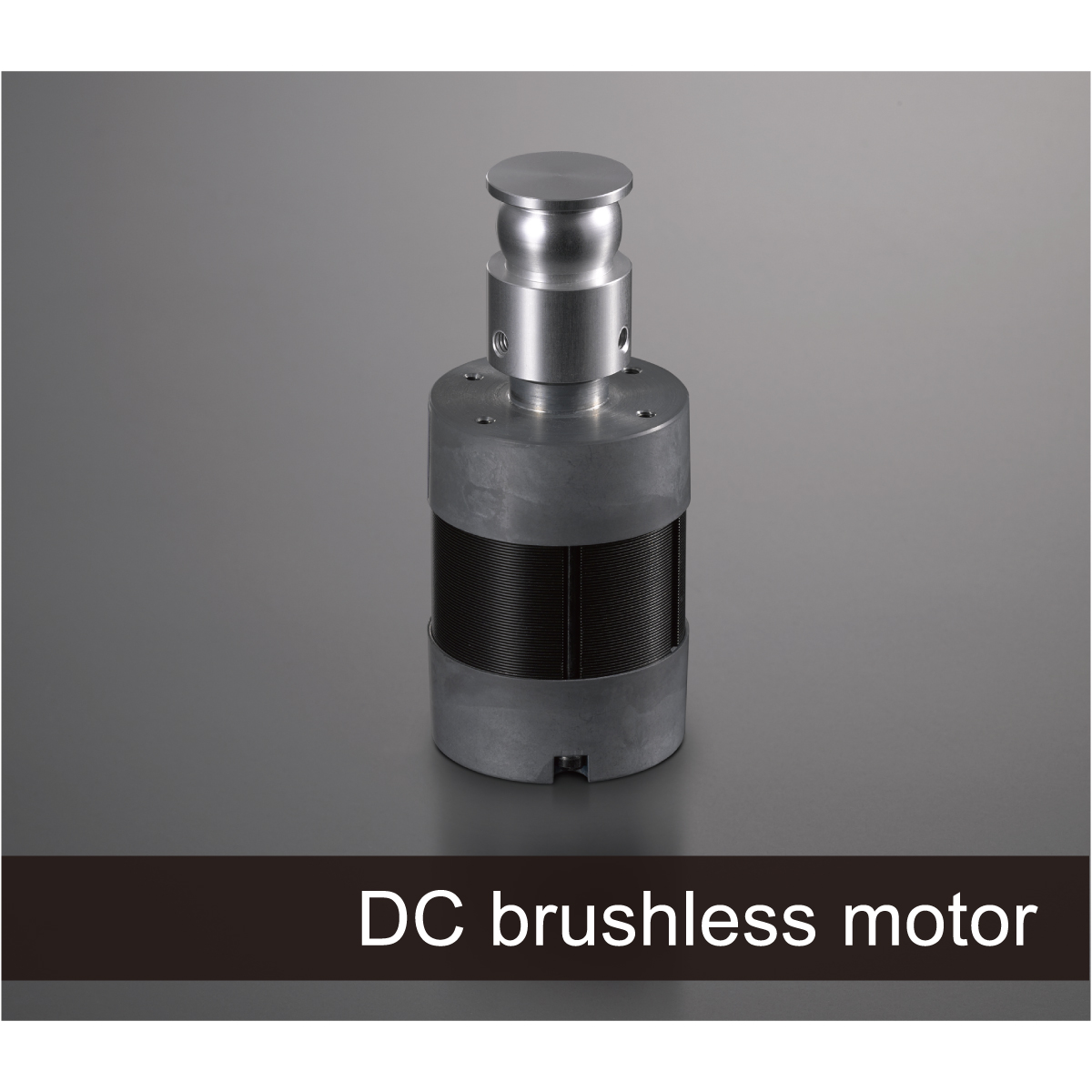

| Motor | Brushless DC motor with PID control |
| Material | Machined aluminum, Surface finish: Diamond cut |

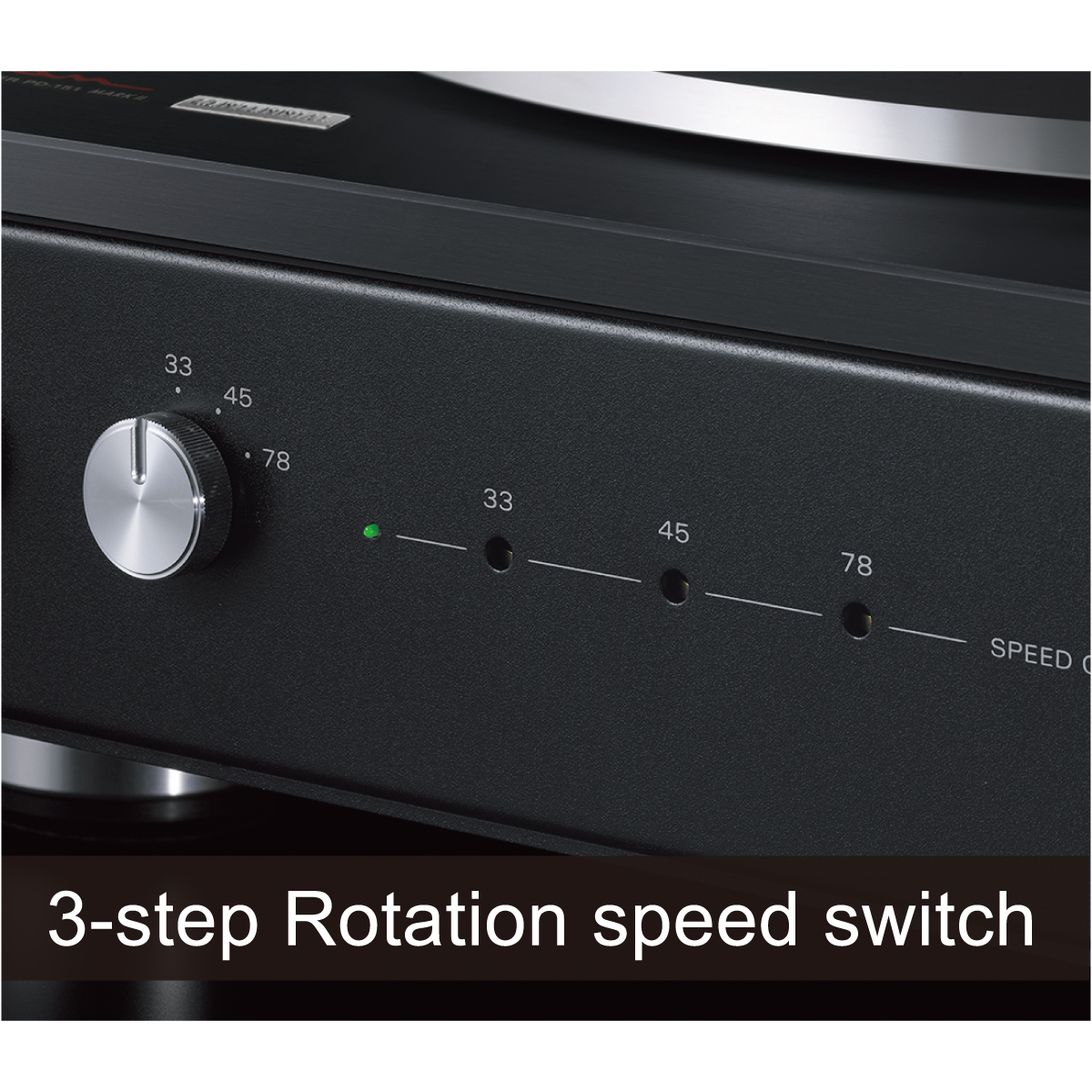

| Revolution | 33 1/3rpm, 45rpm, 78rpm (3 speeds selectable) |
| Revolution adjustment range | ±6% (each rotation speed adjustable independently) |
| Wow and flutter | 0.04% or less (W.R.M.S.) |

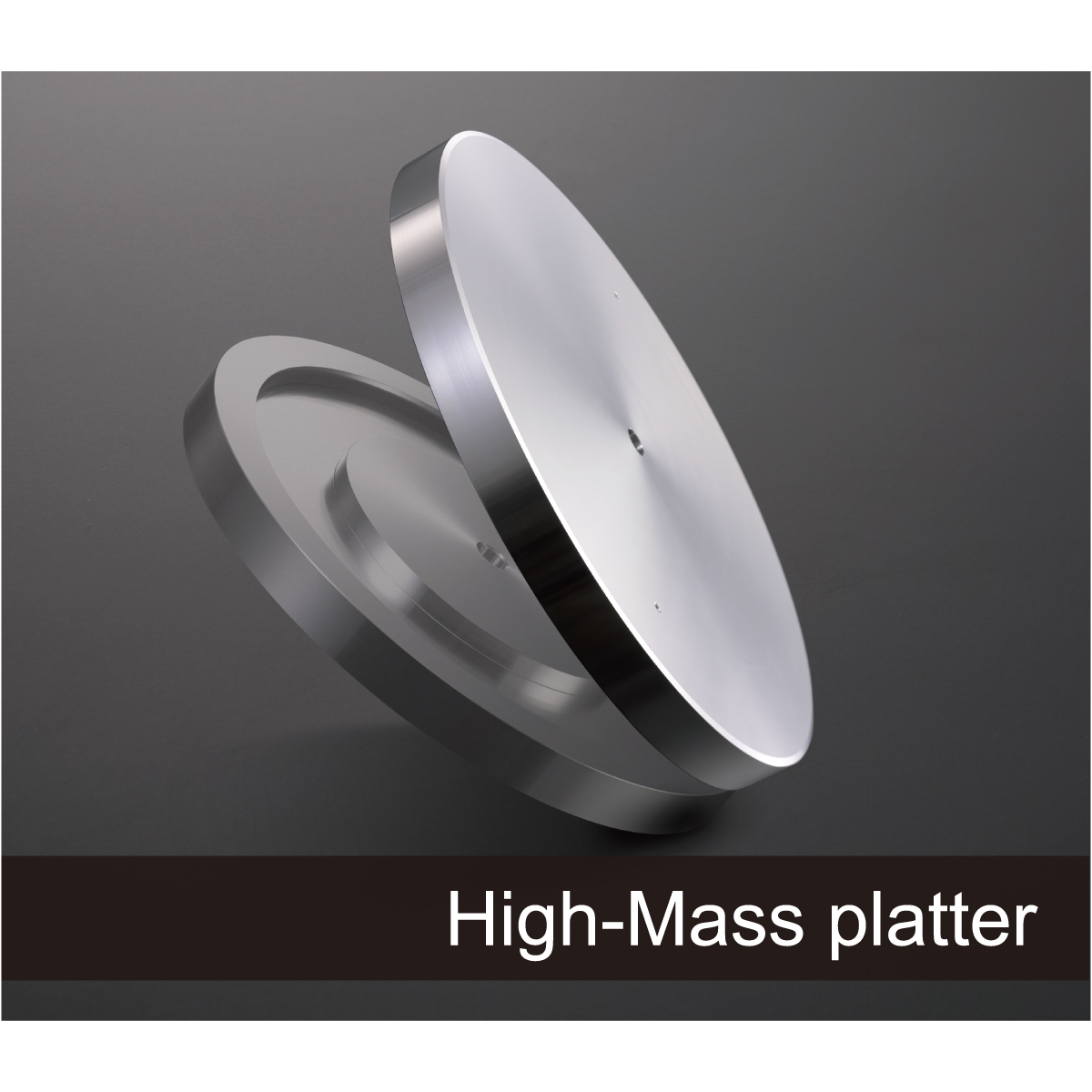

| Weight | 4.0kg (Platter) |

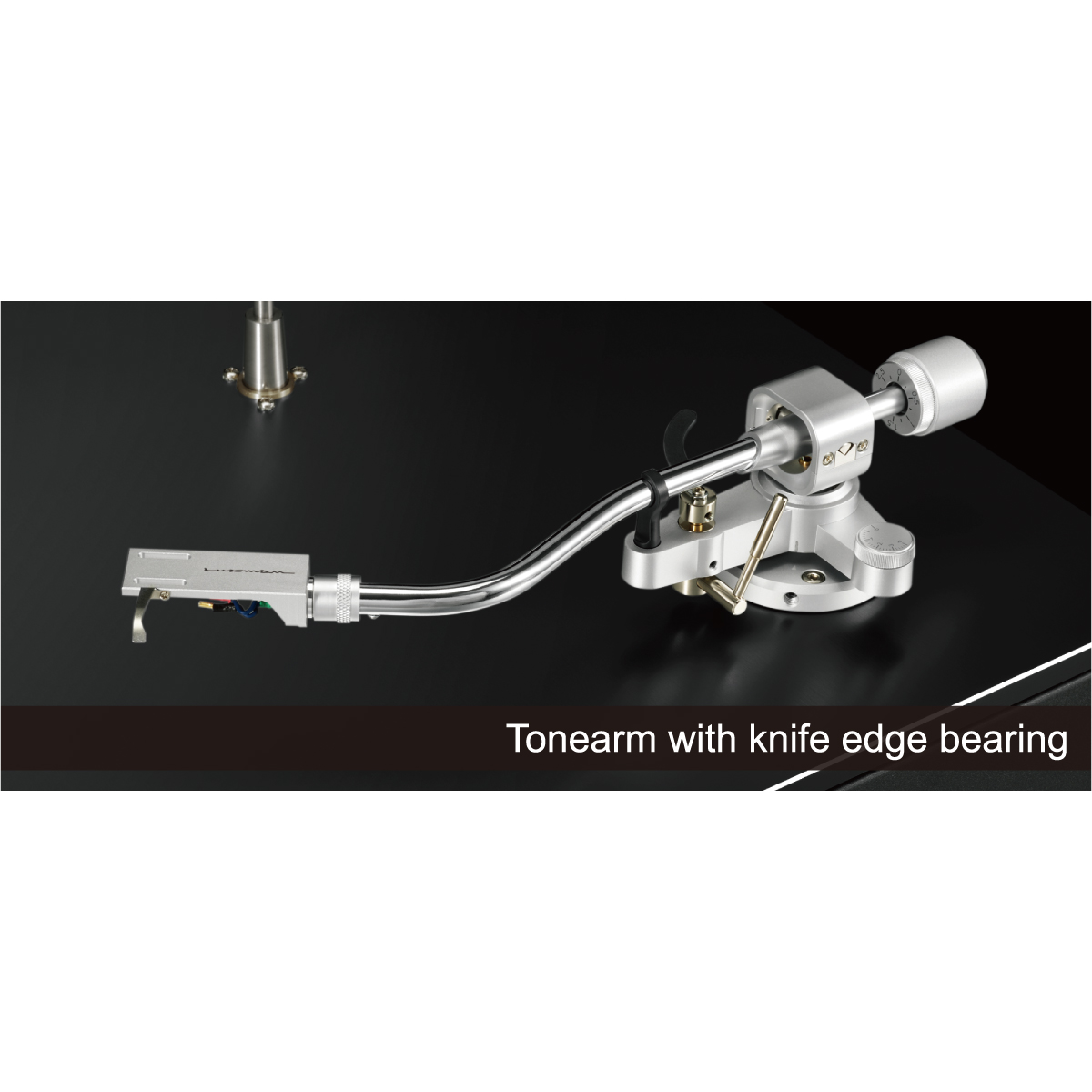

| Tone arm section | |
| Type | Static balanced, S shaped, universal type |
| Bearing | Concealed knife edge |
| Effective length | 222.5mm |
| Overhang | 18mm |
| Tracking error angle | ±3° or less |
| Applicable cartridge weight | 4 to 10g (including headshell 17 to 23g) |
| Adjustable height range | 15mm |
| Anti-skating | 0 to 4g |
| Main unit | |
|---|---|
| Power source | 230V～50Hz |
| Power consumption | 6W |
| Dimensions | 465(W) × 133(to the upper surface of the platter) (H)× 393(D) mm |
| Net weight | 15.8kg (main unit), 17.2kg (with dust cover) |
| Accessories | Platter, Headshell, Rubber mat, Rubber belt, Platter mount handle (2 pieces) EP adaptor, Counterweight Arm adjustment hex wrench set (2 types) Flathead screwdriver for rotation speed adjustment phono cable (DIN→RCA : already installed in the unit), Power cable |
| Phono Motor section |
|---|
| Drive system |
| Belt drive system |
| Motor |
| Brushless DC motor with PID control |
| Material |
| Machined aluminum, Surface finish: Diamond cut |
| Revolution |
| 33 1/3rpm, 45rpm, 78rpm (3 speeds selectable) |
| Revolution adjustment range |
| ±6% (each rotation speed adjustable independently) |
| Wow and flutter |
| 0.04% or less (W.R.M.S.) |
| Weight |
| 4.0kg (Platter) |
| Tone arm section |
| Type |
| Static balanced, S shaped, universal type |
| Bearing |
| Concealed knife edge |
| Effective length |
| 222.5mm |
| Overhang |
| 18mm |
| Tracking error angle |
| ±3° or less |
| Applicable cartridge weight |
| 4 to 10g (including headshell 17 to 23g) |
| Adjustable height range |
| 15mm |
| Anti-skating |
| 0 to 4g |
| Main unit |
|---|
| Power source |
| 230V～50Hz |
| Power consumption |
| 6W |
| Dimensions |
| 465(W) × 133(to the upper surface of the platter) (H)× 393(D) mm |
| Net weight |
| 15.8kg (main unit), 17.2kg (with dust cover) |
| Accessories |
| Platter, Headshell, Rubber mat, Rubber belt, Platter mount handle (2 pieces) EP adaptor, Counterweight Arm adjustment hex wrench set (2 types) Flathead screwdriver for rotation speed adjustment phono cable (DIN→RCA : already installed in the unit), Power cable |
