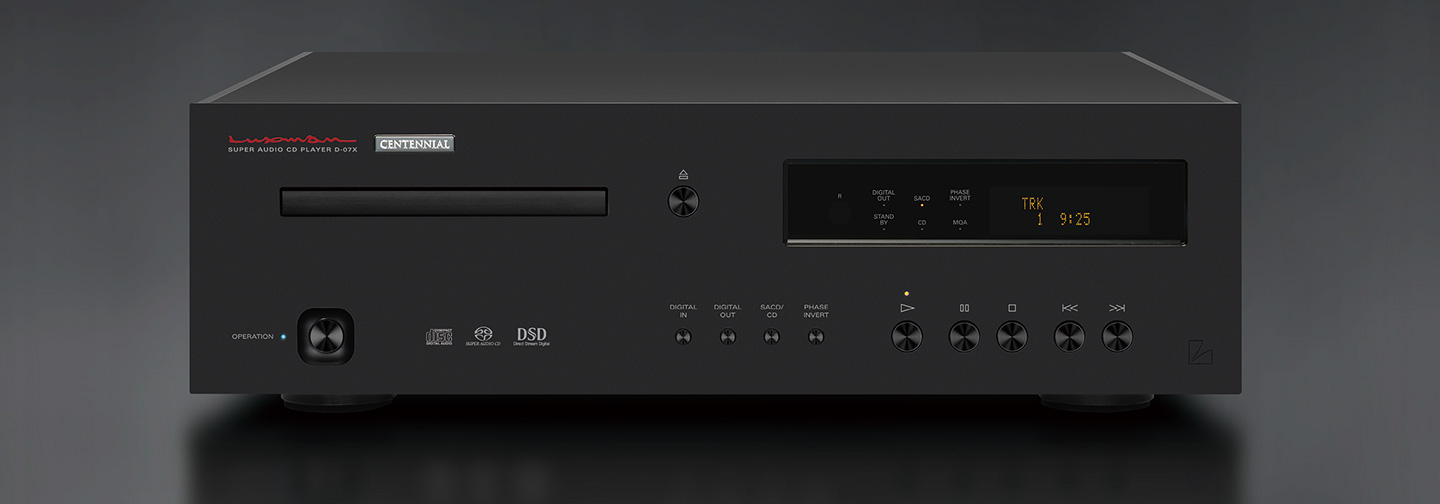

100th Anniversary Limited Edition
| Supported discsm | SACD, CD (CD-R, CD-RW, MQA-CD) |
|---|---|
| Supported sampling frequencies | USB input (PCM) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit) USB input (DSD) : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz (1-bit) Coaxial / Optical input : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit) |
| Analog output voltage / impedance | Unbalanced : 2.4 V / 300 Ω, Balanced : 2.4 V / 600 Ω For SACD / DSD : 2.3 V |
| Frequency response | CD : 5 Hz to 20 kHz (+0, -1.0 dB) SACD : 5 Hz to 38 kHz (+0, -3.0 dB) USB : 5 Hz to 47 kHz (+0, -3.0 dB) |
| Total harmonic distortion | CD : 0.0016 %, SACD : 0.0007 %, USB : 0.001 % |
| S/N ratio (IHF-A) | CD : 122 dB, SACD : 125 dB, USB : 122 dB |

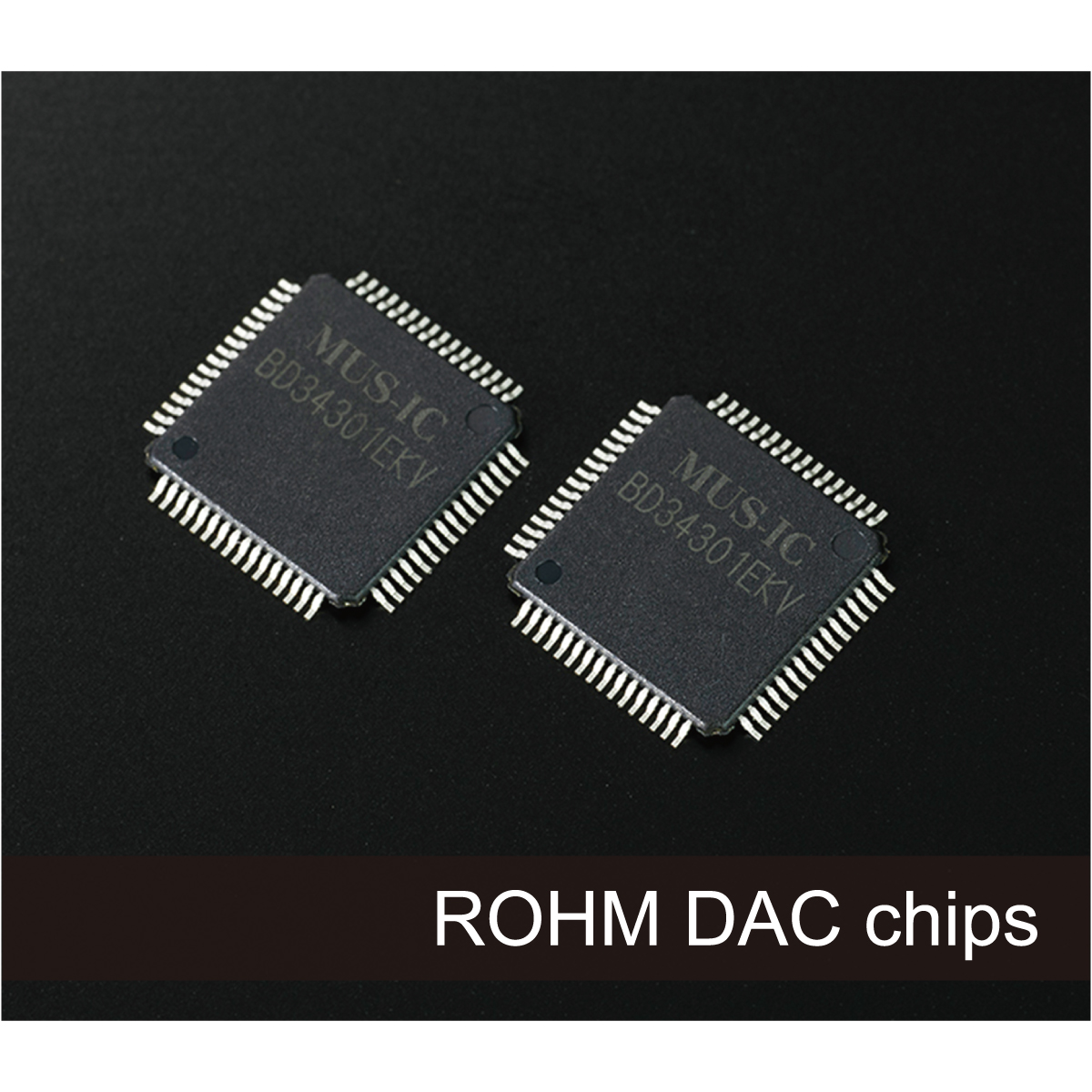

| D/A converter | ROHM BD34301EKV (monaural mode) x 2 |
| Power supply | 230 V～(50 Hz) / 115 V～ (60 Hz) |
| Power consumption | 37W |

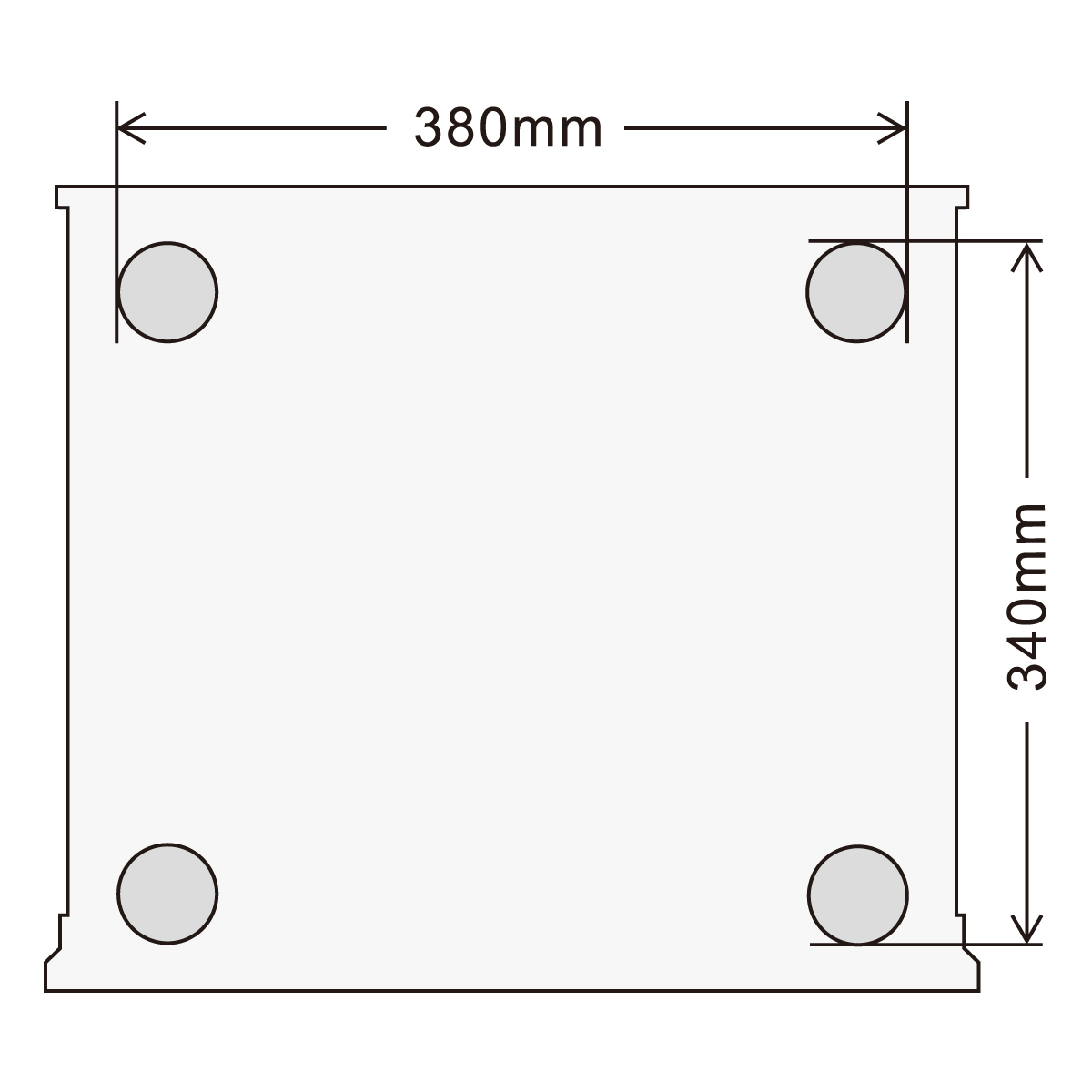

| Dimensions | 440(W) x 132(H) x 410(D) mm front side knob of 2 mm and rear side terminal of 8 mm included in depth |
| Net weight | 17.0 kg |
| Accessories | Remote control (RD-29), Power cable |
