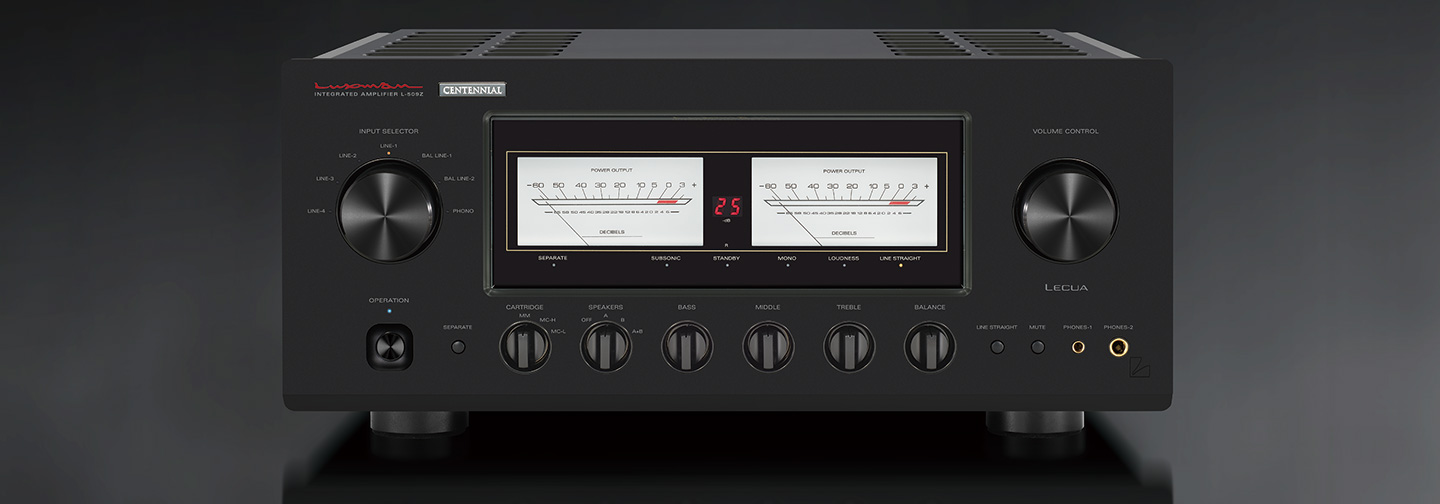

100th Anniversary Limited Edition
| Rated output | 120W + 120W (8Ω) 220W + 220W (4Ω) |
|---|---|
| Input sensitivity/ input impedance | PHONO (MM): 2.5mV/47kΩ PHONO (MC-H): 0.3mV/100Ω PHONO (MC-L): 0.1mV/40Ω LINE: 180mV/47kΩ BAL.LINE: 180mV/79kΩ MAIN IN: 1.1V/47kΩ |
| Output voltage | PRE OUT: 1V |
| Frequency response | PHONO: 20Hz to 20kHz (±0.5dB) LINE: 20Hz to 100kHz (within -3dB) |
| Total harmonic distortion | 0.007% or less (8Ω, 1kHz) 0.03% or less (8Ω, 20Hz to 20kHz) |
| S/N ratio (IHF-A) | PHONO (MM): 87dB or more PHONO (MC-H): 70dB or more PHONO (MC-L): 62dB or more LINE: 106dB or more |

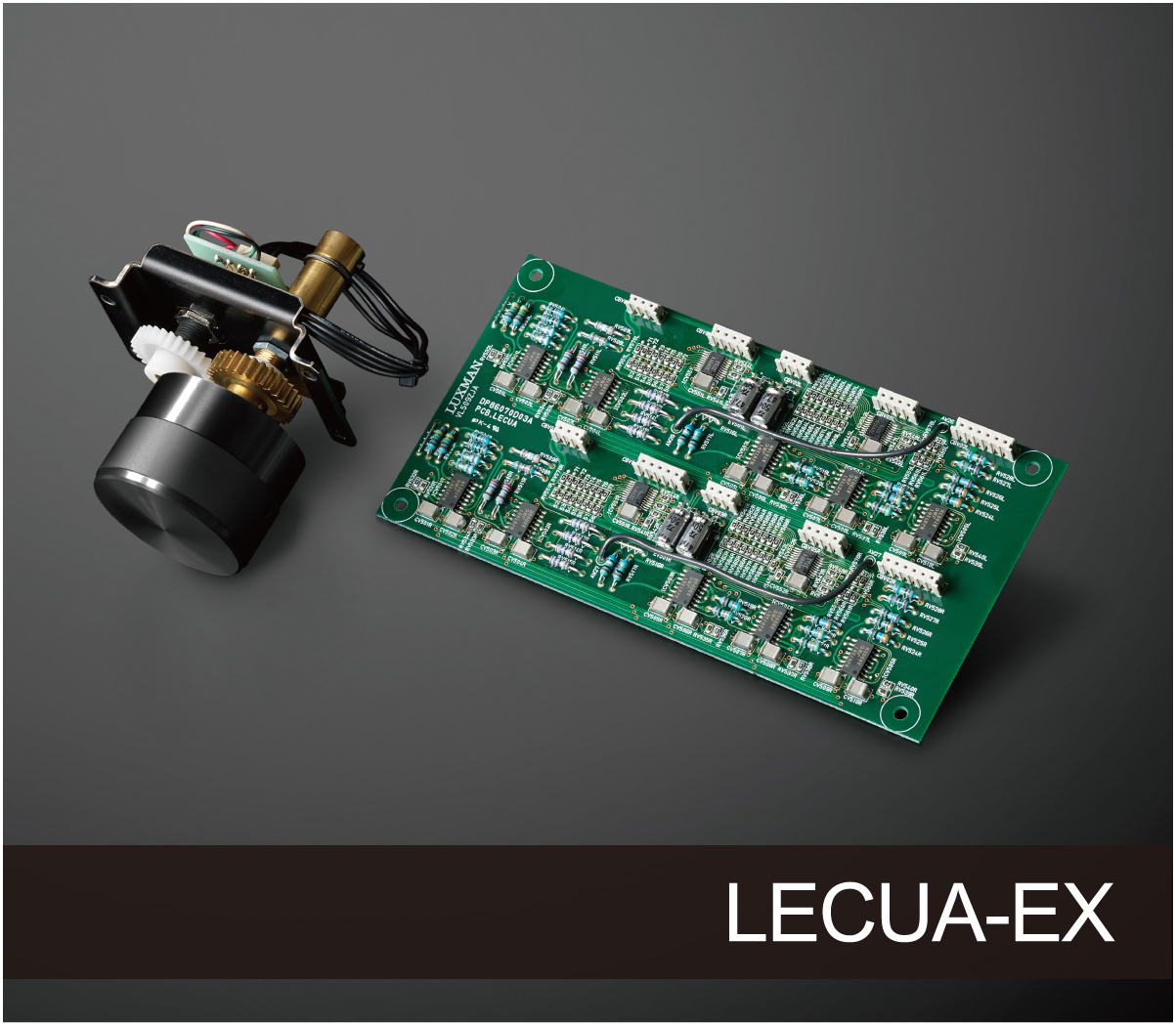

| Volume adjustment | LECUA-EX |
| Amplification feedback circuit | LIFES 1.0 |
| Output configuration | Bipolar 4-parallel push-pull |
| Damping factor | 330 |
|---|---|
| Max. amount of tone control | BASS: ±8dB at 100Hz TREBLE: ±8dB at 760Hz TREBLE: ±8dB at 10kHz |
| Power supply | 230V~(50Hz) / 115V~(60Hz) |
| Power consumption | 390W 150W (under no signal), 0.5W (at standby) |
| External dimensions | 440(W) x 193(H) x 463(D) mm front side knob of 20mm and rear side terminal of 37mm included in depth |
| Net weight | 29.4kg (main unit) |
| Accessories | Remote control (RA-17A) Power cable |
| Speaker terminal Supported Y-lug terminal dimension | Width of part a: 16mm or less Width of part b: 7mm or more  * Connection may not be performed depending on the shape of the Y-lug terminal. |
| Rated output |
|---|
| 120W + 120W (8Ω) 220W + 220W (4Ω) |
| Input sensitivity/ input impedance |
| PHONO (MM): 2.5mV/47kΩ PHONO (MC-H): 0.3mV/100Ω PHONO (MC-L): 0.1mV/40Ω LINE: 180mV/47kΩ BAL.LINE: 180mV/79kΩ MAIN IN: 1.1V/47kΩ |
| Output voltage |
| PRE OUT: 1V |
| Frequency response |
| PHONO: 20Hz to 20kHz (±0.5dB) LINE: 20Hz to 100kHz (within -3dB) |
| Total harmonic distortion |
| 0.007% or less (8Ω, 1kHz) 0.03% or less (8Ω, 20Hz to 20kHz) |
| S/N ratio (IHF-A) |
| PHONO (MM): 87dB or more PHONO (MC-H): 70dB or more PHONO (MC-L): 62dB or more LINE: 106dB or more |
| Volume adjustment |
| LECUA-EX |
| Amplification feedback circuit |
| LIFES 1.0 |
| Output configuration |
| Bipolar 4-parallel push-pull |
| Damping factor |
|---|
| 330 |
| Max. amount of tone control |
| BASS: ±8dB at 100Hz TREBLE: ±8dB at 760Hz TREBLE: ±8dB at 10kHz |
| Power supply |
| 230V~(50Hz) / 115V~(60Hz) |
| Power consumption |
| 390W 150W (under no signal), 0.5W (at standby) |
| External dimensions |
| 440(W) x 193(H) x 463(D) mm front side knob of 20mm and rear side terminal of 37mm included in depth |
| Net weight |
| 29.4kg (main unit) |
| Accessories |
| Remote control (RA-17A) Power cable |
| Speaker terminal Supported Y-lug terminal dimension |
| Width of part a: 16mm or less Width of part b: 7mm or more * Connection may not be performed depending on the shape of the Y-lug terminal. |
