DIGITAL PLAYERS

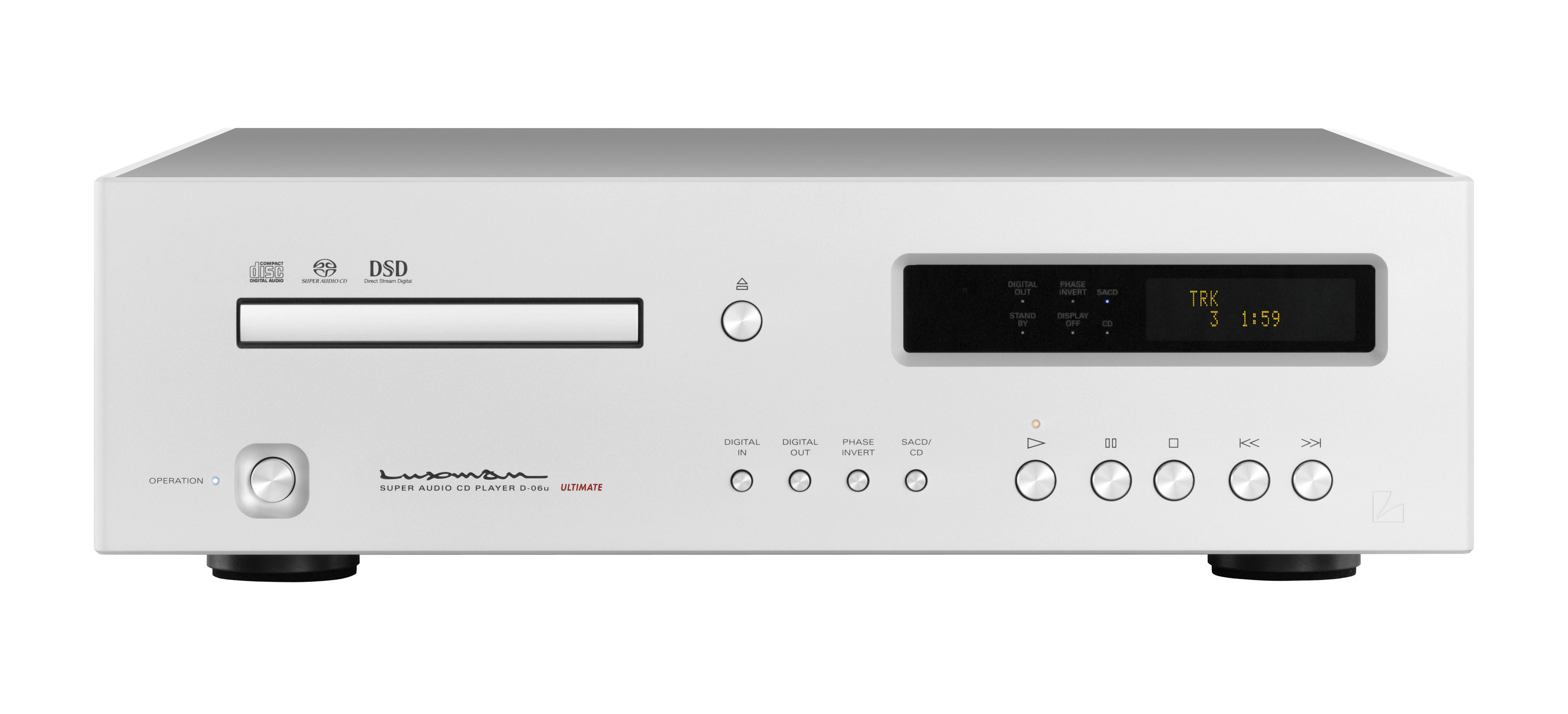

D-06u

Genealogy of the flagship, concentrating digital playback charms

D-06u succeeding the magnificent configuration of our flagship model, D-08u, is a CD/SACD player that plays back file sound sources by connecting to a Windows or Mac PC via USB. LxDTM*, Luxman's original disc drive mechanism with overwhelming rigidity and high reading accuracy is provided to stabilize the rotation system at disc media playback, and the latest high sound quality configuration including 32-bit digital signal processor is provided in the digital circuit.The leading-edge USB D/A converter is provided to support 384 kHz/32-bit PCM and 5.64 MHz DSD, for-seeing the further progress of file sound sources. With the enhanced charm as "Digital Media Player", D-06u proposes a new style to play back the music.
* LxDTM is an abbreviation for Luxman original Disc Transport Mechanism.
Advanced digital circuit

Advanced digital circuit

D-06u is equipped with dual-configured (monaural mode) PCM1792A D/A converter that has achieved ultra-high S/N ratio and dynamic range (theoretical value: 132 dB) manufactured by Texas Instruments Incorporated to support playback of not only CDs and SACDs but also file sound sources of up to 384 kHz/32-bit PCM data and DSD data (2.82 M, 5.64 MHz) by connecting a Windows or Mac PC via USB. TAS3152, the latest 32-bit digital signal processor manufactured by Texas Instruments Incorporated, upsamples PCM signals to up to 384 kHz to polish the sound quality. Thanks to the function of the chip mentioned above, a digital filter is selectable from 3 types for PCM signals, and a tone is selectable from 2 types made by the DAC chip-embedded analog FIR filter for DSD signals. As countermeasures against jitter, the jitter of USB signals is reduced by the dedicated DSP via asynchronous communication, the jitter of CD or S/PDIF signals is reduced by the embedded DAIR high-precision clock, and the jitter of SACD signals is reduced by the dedicated jitter reduction chip. In addition, the low phase noise clock module improves the accuracy of the entire signal transmission.

Balanced amplifier circuit

Balanced amplifier circuit

A high-grade analog amplification circuit is necessary to convert playback signals that have been precisely read by the drive mechanism and sophisticatedly digitized into analog signals through the highly precise D/A converter and produce high-quality audio signals finally by the player. D-06u makes the differential output of the D/A converter, PCM1792A, operating at the monaural mode reduce the impedance by the high sound quality buffer circuit with thoroughly balanced configuration (identically configured amplifier x 4 units). This unit powerfully drives the next stage components such as a pre-main amplifier and a control amplifier. The high-inertia power supply system through the regulators and block capacitor with large capacity allocated for each circuit powerfully supports stable operation with sufficient power from Luxman's traditional audio-specific power transformer.

Wide variety of digital input terminals

Wide variety of digital input terminals

PCM digital input terminals consisting of 1 channel of coaxial line capable of up to 192 kHz/24 bits and 1 channel of optical line as well as USB port ready for DSD/PCM signals on the rear panel. This unit, therefore, can be a digital center connecting to various digital sources.

Zoom display mode

Zoom display mode

The highly-visible dimmer functionequipped FL display that stands out against gorgeous-looking blasted white sophisticated finishing is equipped with the zoom mode that is useful for operating with a remote control.

Original mechanism LxDTM

Original mechanism LxDTM

D-06u is equipped with LxDTM, LUXMAN original high-rigidity disc drive mechanism. The box chassis structure that covers the entire base section storing the traverse allows external vibrations to be rigidly blocked out and enables reading digital signals with sufficient accuracy. This mechanism has adopted an asymmetrical left-sided mechanism layout after careful consideration of sufficient space for voluminous analog circuit, ideal flow for all kinds of signals, oscillatory path, and weight balance without the use of general type centered mechanism structure. Thick die-cast aluminum is used for the loader on which a disc is put. Use of this loader can fundamentally eliminates unnecessary resonance and vibration that are applied to the loader and provide quiet and smooth operation.

Gradation cast-iron leg

Gradation cast-iron leg

Gradation cast-iron legs are used to prevent resonance thanks to its characteristics that the metallic structure becomes smaller from the center to the periphery of the leg to suppress external vibration transmitted from the contact area and unnecessary vibration generated in the cabinet itself.

Comfortable remote control operation

Comfortable remote control operation

The aluminum-made dedicated remote control is supplied for comfortable operation while you are in an ideal listening position. This remote control is a slim type comfortably fit in your hand, yet, has ten keys, and is excellent in operability.

Spec

Applicable disc2-channel SACD, CD
Supported sampling frequenciesUSB input (PCM) : 32k, 44.1k, 48k, 88.2k
96k, 176.4k, 192k
352.8k, 384kHz (16, 24, 32bits)
USB input (DSD) : 2.82M, 5.64MHz (1bit)
COAX/OPT input : 32k, 44.1k, 48k, 88.2k
96k, 176.4k, 192kHz (16, 20, 24bits)
Analog output voltage / impedance2.5V/300Ω (unbalanced), 600Ω (balanced)
Frequency response CD 5Hz to 20kHz (+0, -0.5dB)
SACD 5Hz to 50kHz (+0, -3.0dB)
USB 5Hz to 50kHz (+0, -3.0dB)
Total harmonic distortionCD 0.0015%, SACD 0.0011%, USB 0.0009%
S/N ratio (IHF-A)CD 122dB, SACD 104dB, USB 123dB
Disc drive mechanismLxDTM
D/A converterBurr-Brown-made PCM1792A
(monaural mode) x 2
Output amplifier circuitFully balanced/high sound quality IC buffer
Power consumption29W
1W (at standby)
Dimensions440(W) x 133(H) x 410(D) mm
front side knob of 2mm and rear side terminal
of 8mm included in depth
Net weight15.7kg
AccessoriesRemote control (RD-21)
Power cable
Install software CD
Applicable disc
2-channel SACD, CD
Supported sampling frequencies
USB input (PCM) : 32k, 44.1k, 48k, 88.2k
96k, 176.4k, 192k
352.8k, 384kHz (16, 24, 32bits)
USB input (DSD) : 2.82M, 5.64MHz (1bit)
COAX/OPT input : 32k, 44.1k, 48k, 88.2k
96k, 176.4k, 192kHz (16, 20, 24bits)
Analog output voltage / impedance
2.5V/300Ω (unbalanced), 600Ω (balanced)
Frequency response
CD 5Hz to 20kHz (+0, -0.5dB)
SACD 5Hz to 50kHz (+0, -3.0dB)
USB 5Hz to 50kHz (+0, -3.0dB)
Total harmonic distortion
CD 0.0015%, SACD 0.0011%, USB 0.0009%
S/N ratio (IHF-A)
CD 122dB, SACD 104dB, USB 123dB
Disc drive mechanism
LxDTM
D/A converter
Burr-Brown-made PCM1792A
(monaural mode) x 2
Output amplifier circuit
Fully balanced/high sound quality IC buffer
Power consumption
29W
1W (at standby)
Dimensions
440(W) x 133(H) x 410(D) mm
front side knob of 2mm and rear side terminal
of 8mm included in depth
Net weight
15.7kg
Accessories
Remote control (RD-21)
Power cable
Install software CD
